Sequence Diagram

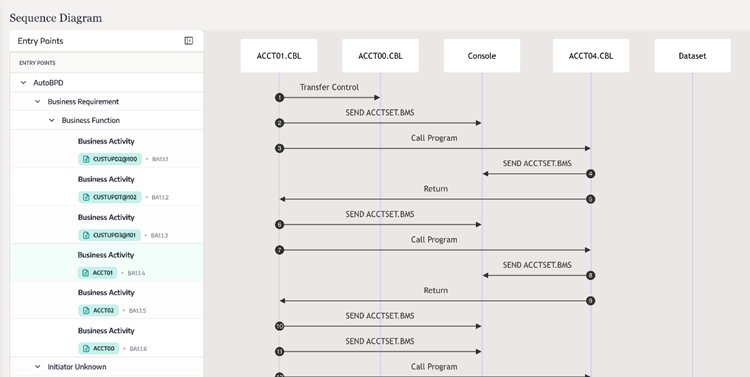

The Sequence Diagram is generated for each Job and captures the sequence of execution starting from the JCL through PROC and Programs. The method in which the control is transferred between two application components is also captured. Likewise, appropriate Data Operations from a Program to a Dataset are also indicated. In short, the Sequence Diagram provides a snapshot of the various application components within a Job and how they interact with each other.
